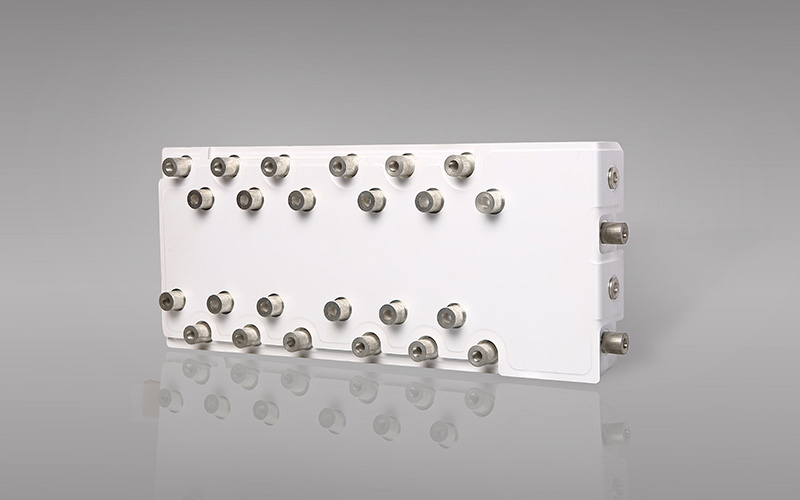

叠层母排 Laminated Busbar



特性/Features

1.低电感系数;
2.结构紧凑,有效利用空间且能控制系统温度
3.过载能力强
4.减少电压尖峰对元器件的损害,延长(提高)电子元件的使用寿命
5.降低系统噪音和电磁干扰/射频干扰
6.方便安装和现场维护
7.减少部件数量,增加了系统的可靠性
8.增加电容及均匀分布电容
9.简洁、美观
1.Low inductance coefficient,
2.Compact structure, effectively save internal installation space, and can control the system temperature
3. Strong overload capacity
4.Reduce the voltage commutation process of the damage to the components, extend the service life of electronic components;
5.Reduce the system noise and electromagnetic interference, radio frequency interference;
6.Convenient installation and maintenance
7.Decrease the quantity of the components to increase the reliability of the system
8.Increasing capacitance and evenly distributed capacitance
9. Simple, beautiful


产品参数/Technical Data sheet

项目 Item

说明 Instruction

工作电压 Working Voltage

0~20kV  0~20kV

额定电流 Rated Current

0~3600A  0~3600A

产品结构 Product Structure

热压封边、热压不封边、热压灌封 Hot-pressing with side sealing, Hot pressing with side not sealing, Hot filling and sealing

最大加工尺寸 Maximum processing size

900~1900MM 900~1900MM

阻燃等级 Flammability class

UL94 V-0 UL94 V-0

导体材料 conductor material

T2Cu1060 AL T2Cu1060 AL

导体表面处理 Conductor surface treatment

钝化、镀锡、镀镍、镀银 Passivation, tin plating, nickel plating ,and silver plating

与器件连接方式                  Connection way with the device

压凸、铜柱铆接、铜柱焊接                                                     Belling ,Copper Cylinder riveting, Copper Cylinder welding

绝缘电阻 insulation resistance

20MΩ~ ∞    20MΩ~ ∞

局部放电 partial discharge

小于10PC   10PC

温升 temperature rise

0~40K     0~40K

母排参数指标
Busbar Parameter Index

额定电压  Rated Voltage

额定电流  Rated Current

 绝缘耐压  Withstand Voltage

局放 Partial Discharge

绝缘电阻 Insulation Resistance

长期工作温度 Long-term working tempreture

220V

200V

3500V

None

DC1000V 大于20mΩ

-40-105

1000V

1000V

4500V

AC1500V 小于10PC

DC1000V 大于20mΩ

-40-105

DC500-8000V

50-1500A

AC2500-15000V

AC 1000-6000

DC1000V 大于20mΩ

-40-105

220-380V

200A

1000V

None

DC1000V 大于20mΩ

-40-105



应用领域/Application
电动汽车、光伏逆变器、轨道交通、电源放大器
Electric Vehicel /Photovolataic Inverter/Rail transit/Power Amplifiers.
