特性/ Properties
1. 优异的粘结性能
Excellent bonding ability
2. 无卤素
Halogen free
3. 低Z轴膨胀系数
Low Z axis CTE
4. 优异的耐热性
Excellent Thermal Resistance
5. 优异的加工性能
Compatible with FR-4 Process Condition
6. 低粉尘
Low powder dust
应用领域 / Applications
适用于多层刚挠板，阶梯板，散热片等。
Suitable for multilayer rigid-flex PCB, die cavity board and heat sinks.

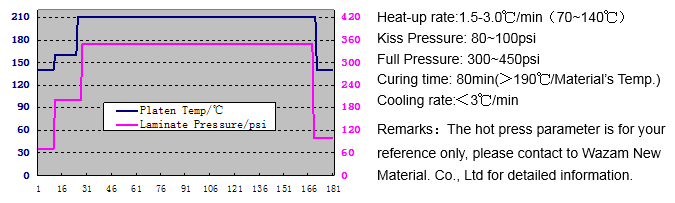

建议压制程式： Suggest Press cycle
主要特性 / General properties
检测项目 Item | 单位 Unit | 检测条件 Test Condition | 规范值 Spec | 典型值 Typical Value | |
玻璃化转变温度 Tg | ℃ | DSC | \ | 170 | |
剥离强度 Peel Strength | Cu(1OZ) | N/mm | As Received | ≥0.7 | 1.40 |
CVL | \ | 1.20 | |||
热分解温度 Td | ℃ | Weight Loss 5% | \ | 370 | |
表面电阻 Surface Resistivity | MΩ | C-96/35/90 | ≥1.0×104 | ≥1.0×108 | |
体积电阻 Volume Resistivity | MΩ•cm | C-96/35/90 | ≥1.0×106 | ≥1.0×1010 | |
燃烧性 Flammability | － | E 24/125 | UL94V-0 | V-0 | |
介电常数 Dielectric Constant | － | 5GHz C 24/23/50 | \ | 4.1 | |
介质损耗角正切 Loss Tangent | － | 5GHz C 24/23/50 | \ | 0.015 | |
吸水率 Moisture Absorption | % | D 24/23 | ≤0.8 | 0.20 | |
CTE Z-axis | Alpha 1 | ppm / ℃ | TMA | — | 70 |
Alpha 2 | ppm / ℃ | — | 300 | ||
Specification sheet:IPC-4101E/130，is for your reference only
Explanation: C: Humidity conditioning D: Immersion conditioning in distilled water
E: Temperature conditioning
Typical values are a representation of an average value for the population of the property.
For specification values, please turn to Wazam New Material Co., Ltd for detailed information.
产品系列 / Products information

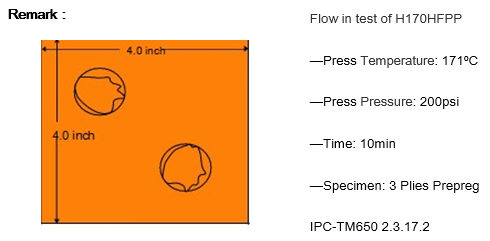

产品系列 Products Series | 半固化片类型 Prepreg Type | 胶含量 Resin Content(%) | 流动度 Flow in | 压合厚度 Cured thickness(mm/mil) | |||||
含量 RC(%) | 公差 Tolerance | Nominal | Range(±)mil | ||||||
% | ± | mm | mil | mm | mil | mm | mil | ||
H170HFPP | 3313 | 56 | 2 | 0.1~0.75 | 4~30 | 0.100 | 3.9 | 0.013 | 0.5 |
1078/1080 | 65 | 2 | 0.1~0.75 | 4~30 | 0.080 | 3.1 | 0.013 | 0.5 | |
1078/1080 | 68 | 2 | 0.1~0.75 | 4~30 | 0.090 | 3.5 | 0.013 | 0.5 | |
1067 | 69 | 2 | 0.1~0.75 | 4~30 | 0.060 | 2.4 | 0.013 | 0.5 | |
106 | 71 | 2 | 0.1~0.75 | 4~30 | 0.050 | 2.0 | 0.013 | 0.5 | |
储存条件 /Storage Condition
温度≤23℃、湿度≤50%，保存时间 3 个月；温度≤5℃、密封条件下，保存时间 6 个月.
T≤23℃& ≤50%RH, Within 3 months; T≤5 ℃ Within 6 months (seal condition).
在上述要求内，我司可立即安排 PP 送样；若有特殊要求，由供需双方商定。
Follow upwards condition, our company will arrange sample immediately. We can negotiation if you have special requirement.
