H140A M

特性/ Features

Tg:135±5°C (DSC)

UV Blocking 与 AOI 兼容可提高 PCB 生产效率
UV Blocking and AOI compatible,so as to increase productivity efficiency


应用领域/ Applications

适合于 2-6 层 PCB、计算机及外围设备、通讯设备、办公自动设备等。
Suitable for medium multilayer printed circuit board, computer, communication equipment, OA equipment, etc.


主要特性 / General properties

检测项目

Item

单位

Unit

检测条件

Test Condition

规范值

Spec

典型值

Typical Value

玻璃化转变温度 Tg

°C

DSC

135±5

134.3

剥离强度 1oz Peel Strength

N/mm

288°C, 10S

≥1.40

1.70

热应力

Thermal stress

S

288°C, solder dip

>10

160 s

No delamination

弯曲强度

Flexural Strength

N/mm2

经向 LW

≥415

580

纬向 CW

≥345

485

燃烧性 Flammability

Rating

E 24/125

UL94

V-0

表面电阻 Surface Resistivity

After moisture

≥1.0×104

5.16×107

体积电阻 Volume Resistivity

MΩ·cm

After moisture

≥1.0×106

5.07×108

介电常数

Dielectric Constant

-

1MHZ C 24/23/50

≤5.4

4.8

介质损耗角正切

Loss Tangent

-

1MHZ C 24/23/50

≤0.035

0.015

耐电弧 Arc Resistance

S

D48/50+D0.5/23

≥60

131

击穿电压 Dielectric Breakdown

KV

D48/50+D0.5/23

≥40

58

吸水率 Moisture Absorption

%

D24/23

≤0.80

0.11

热分解温度 Td

°C

Weight Loss 5%

325

CTE Z-axis

Alpha 1

ppm / °C

TMA

55

Alpha 2

ppm / °C

290

50 - 260 °C

%

3.8

T288

min

TMA

15

相比漏电起痕指数 CTI

Rating

C-96/20/65

IEC-60112

PLC 3

Specimen Thickness : 1.6mm ; Specification sheet:IPC-4101/97,is for your reference only


产品资料 / Product Datasheet

PRE-PREG (B-STAGE)

GLASS Type

Glass Thickness

RC

公差 Tolerance

Pressed
  Thickness

Range(±)mil

mils

 (%)

±

mm

mil

mm

mil

7628

6.9

52

2

0.232

9.20

0.025

1.00

50

2

0.221

8.80

0.023

0.90

47

2

0.205

8.20

0.020

0.80

45

2

0.196

7.80

0.020

0.80

1506

5.51

50

2

0.173

6.80

0.018

0.70

47

2

0.161

6.40

0.015

0.60

2116

3.54

60

2

0.145

5.70

0.015

0.60

58

2

0.135

5.30

0.013

0.50

55

2

0.127

5.00

0.013

0.50

53

2

0.119

4.70

0.013

0.50

1080

1.97

70

2

0.094

3.70

0.010

0.40

68

2

0.084

3.30

0.008

0.30

65

2

0.079

3.10

0.008

0.30

63

2

0.074

2.90

0.008

0.30

Remark: 1.The above data is for your reference only.

2.Please contact WAZAM sale and TS team if need more Prepreg type.

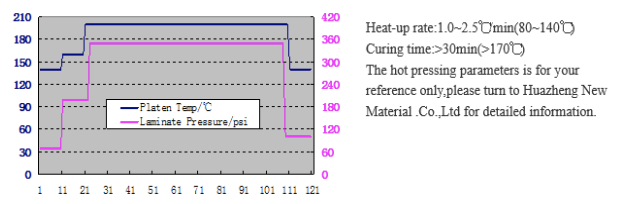

建议压制程式 / Suggest cycle


储存条件温度≤23℃、湿度≤50%,保存时间3个月;温度≤5℃、密封条件下,保存时间6个月.

Storage Condition: T≤23℃& ≤50%RH,Within 3 months;  T≤5 ℃ Within 6 months (seal condition).

在上述要求内,我司可立即安排PP送样;若有特殊要求,由供需双方商定。Follow above condition,

Our company will arrange sample immediately. We can disscuss if you have special requirement.
