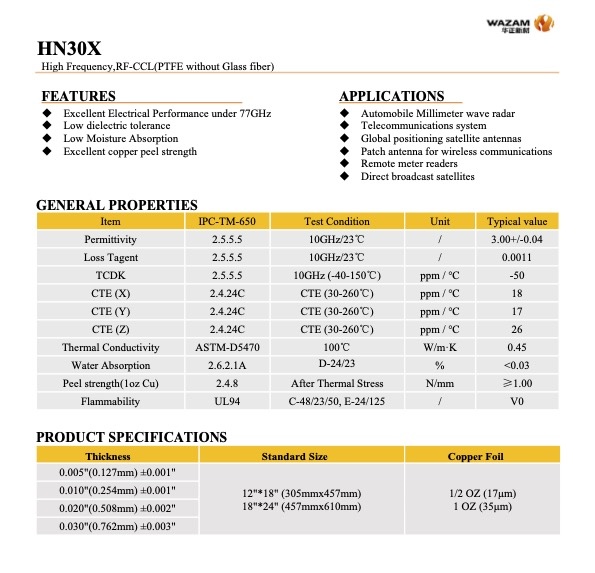

FEATURES
Excellent Electrical Performance under 77GHz
Stable Dielectric property, Non glass fabric effect
Good PCB Processability
Low moisture absorption
Excellent dimensional stability
APPLICATIONS
Automobile Millimeter wave radar
GPS
Power Amplifier
GENERAL PROPERTIES
Item | Test Method | Unit | HN30X |
Dielectric Constant | IPC TM-650 2.5.5.5 | / | 3.00+/-0.04 |
Dissipation Factor | IPC TM-650 2.5.5.5 | / | 0.0011 |
TCDK | IPC TM-650 2.5.5.5 | ppm / ℃ | -50 |
Peel strength | IPCTM-650 2.4.8 | lb/inch | ≧6 |
Thermal Conductivity | ASTM-D5470 | W/m·K | 0.45 |
Moisture Absorption | IPC TM-650 2.6.2.1A | % | <0.03 |
CTE (X) | IPC TM-650 2.4.24C | ppm / ℃ | 18 |
CTE (Y) | IPC TM-650 2.4.24C | ppm / ℃ | 17 |
CTE (Z) | IPC TM-650 2.4.24C | ppm / ℃ | 26 |
PRODUCT SPECIFICATIONS
Thickness | Standard Size | Copper Foil |
0.005"(0.127mm) ±0.001" | 12"*18" (305mmx457mm) 18"*24" (457mmx610mm) | 1/2 OZ (17μm) 1 OZ (35μm) |
0.010"(0.254mm) ±0.001" | ||
0.020"(0.508mm) ±0.002" | ||
0.030"(0.762mm) ±0.003" |
