FEATURES
High Tg,high reliability
Ultra Low Loss,Low Z axis CTE
Excellent thermal resistance
Low water absorption,excellent anti-CAF,high reliability
Compatible with lead-free
APPLICATIONS
Servers，Switch
Base Station，Millimeter Wave Radar for Automotive
High Performance Computing

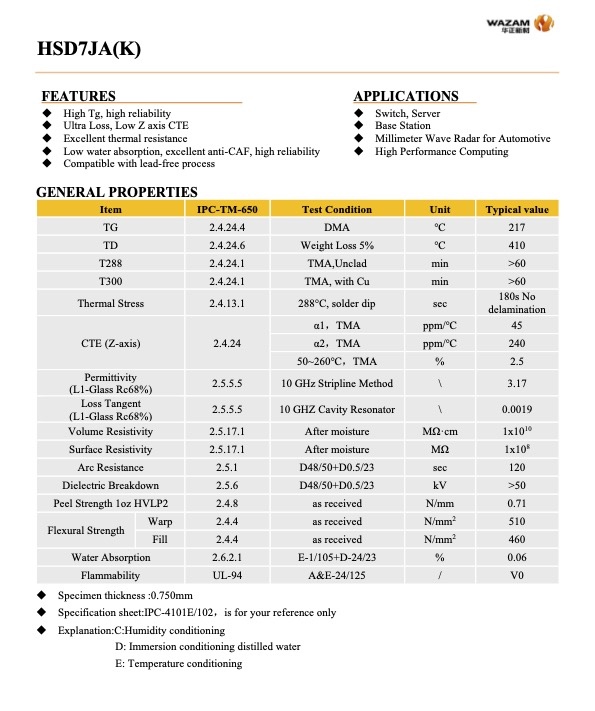

GENERAL PROPERTIES
Item | Test Condition | Unit | Spec | Typical value | |
Glass Transition Temperature (Tg) | DMA | ℃ | ≥200 | 217 | |
Peel Strength 1oz | HVLP2 As Received | N/mm | \ | 0.71 | |
Thermal stress | 288℃, solder dip | S | >10 | >180s No delamination | |
Flexural Strength | LW | N/m㎡
| ≥345 | 510 | |
CW | ≥345 | 460 | |||
Flammability | E 24/125 | - | UL94V-0 | V-0 | |
Surface Resistivity | After moisture | MΩ | 21.0x105 | 1x108 | |
Volume Resistivity | After moisture | MΩ·cm | ≥1.0x106 | 1x1010 | |
Dielectric Constant | 10 GHz Stripline Method | - | \ | 3.17 | |
(L1-Glass Rc68%) Loss Tangent | 10 GHZ Cavity Resonator | - | 0.0019 | ||
(L1-Glass Rc68%)Arc Resistance | D 48/50+D 0.5/23 | S | 120 | ||
Dielectric Breakdown | D 48/50 +D 0.5/23 | kV | >50 | ||
Moisture Absorption | D 24/23 | % | ≤0.2 | 0.06 | |
Td | Weight Loss 5% | ℃ | ≥340 | 410 | |
CTE in XY/Z Axis | Alpha1 | TMA | ppm/℃ | ≤45 | 45 |
Alpha2 | ppm/℃ | ≤260 | 240 | ||
50 - 260°C | % | ≤2.8 | 2.5 | ||
T288(Unclad) | TMA | min | ≥15 | ||
T300 with Cu | TMA | min | ≧2 | >60 | |
u Specimen thickness :0.750mm
u Specification sheet:IPC-4101E/102，is for your reference only
u Explanation: C: Humidity conditioning D: Immersion conditioning in distilled water
E: Temperature conditioning
