FEATURES
High Tg, Halogen free
Low Loss
Excellent Thermal Resistance
Low Z axis CTE
Low water absorption, excellent anti-CAF, high reliability
Compatible with Lead-free process
APPLICATIONS
Switch
Server
Router
Measuring instrument

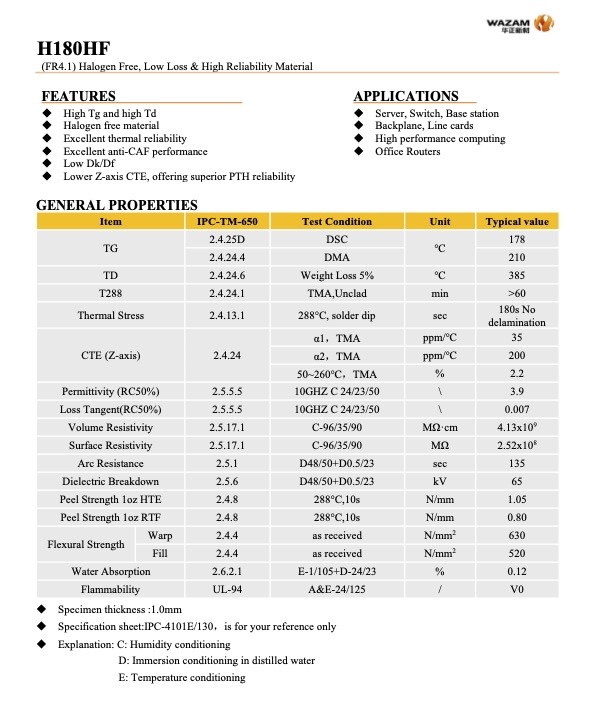

GENERAL PROPERTIES
Item | Test Condition | Unit | Spec | Typical value | |
Tg | DSC | ℃ | ≥170 | 178 | |
Tg | DMA | ℃ | ≥170 | 175 | |
Peel Strength 1oz HTE | 288℃,10S | N/mm | 20.7 | 1.05 | |
Peel Strength 1oz RTF Thermal stress | 288℃,10S | N/mm | 20.7 | 0.80 | |
288℃, solder dip | S | >10 | 180s No delamination | ||
Flexural Strength | Warp | N/m㎡ | 2415 | 630 | |
Fill | 2345 | 520 | |||
Flammability | E 24/125 | - | UL94V-0 | V-0 | |
Surface Resistivity | After moisture | MΩ | ≥1.0x104 | 2.52x108 | |
Volume Resistivity | After moisture | MΩ·cm | ≥1.0x106 | 4.13x109 | |
Dielectric Constant(RC50%) | 10GHZ C 24/23/50 | - | \ | 3.9 | |
Loss Tangent(RC50%) | 10GHZ C 24/23/50 | - | \ | 0.007 | |
Arc Resistance | D 48/50+D 0.5/23 | S | ≥60 | 135 | |
Dielectric Breakdown | D 48/50+D 0.5/23 | KV | ≥40 | 65 | |
Moisture Absorption | D 24/23 | % | ≤0.8 | 0.12 | |
Td | Weight Loss 5% | ℃ | ≥340 | 385 | |
CTE in XY/Z Axis | Alpha1 | TMA | ppm/℃ | ≤60 | 35 |
Alpha2 | ppm /℃ | ≤300 | 200 | ||
50 - 260°C | % | ≤3.0 | 2.2 | ||
T288(Unclad) | TMA | min | ≥15 | >60 | |
u Specimen thickness :1.0mm
u Specification sheet:IPC-4101E/130，is for your reference only.
u Explanation: C: Humidity conditioning
D: Immersion conditioning in distilled water
E: Temperature conditioning
